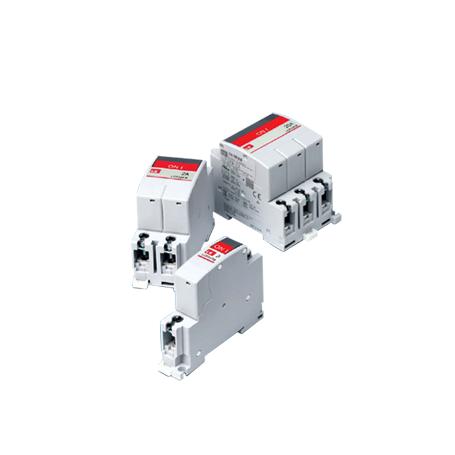

CP ( Circuit Protector )

Features

  • ODP type CP
  • Breaking capacity : 2.5kA
  • Number of pole : 1P~3P
  • Quick operation time
  • Compliance with IEC standard

Specification

Rating LCP-31FM LCP-32FM LCP-33FM LCP-32FI*
Pole 1 2 3 2
Rated insulation voltage (Ui) 250V / 65V 250V / 125V 250V 250V / 125V
Rated current 0.1, 0.3, 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30A 2,3,5,10,15,20,30A
Rated breaking capacity IEC60947-2 1500 1500 1500 1500
IEC60934 2500 2500 2500 2500
Trippping mechanism Hydraulic-magnetic
Electrical durability 10,000 operation or more
Terminal (self-lifting) Main circuit M5 (25A or over), M4 (20A or less)
Auxiliary circuit M3.5
Standards IEC/EN (CE), GB (CCC), UL, TUV
Mass (Approx) 80g 160g 240g 160g

* LCP-32FI : Istantaneous tripping type
